We put top priority on customer’s
Health and satisfaction.

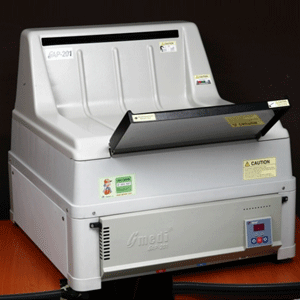

The GAP-201 medical automatic film processor is easy to control and can be used to develop
general medical X-ray films. The developing time, fixation time and temperature of
dry heater and running speed are adjustable. The level developer and fixative is
Automatically controlled and you can always get the best image. |
|
| |
 |
GAP-201 |
|
|
| |
- Easy to control using microprocessor chip
- Best durabillity and adequate humidity
- Minimum space for installation
- Various developing time among the selection of 90/120/180/210 sec |
| |
|
| |
 |
|
 |
|
Removable Feed Tray
Easy Cleansing System |
| |
|
|
 |
|
Operation Panel
The operation panel is compact in size and is Equipped with simple mode control keys. The Running speed and time, dev/ fix/wash replenish, Dev/.fix temperature, dry temperature can be easily Set using the mode key and the up/ down key |
|
| Simple and Hard Unit |
|
|
|
|
| |
|
Silent System |
|
|
| |
The GAP-201 is constructed to run silently with specially designed drying
System and solution circulation system. |
| |
|
|
World Best Image |
|
|
| |
The GAP-201 dev / fix / wash replenishment and dev / fix thermal control is
fully adjustable. The microprocessor control chip consistently delivers world best
image. The processing tank is covered to prevent oxidation and dust free
Of solutions. |
|
|
 |
|
| |
 |
|
| Film Entrance |
|
|
 |
|
Operation Panel
&Processing Sign |
|
|
|
| |
|
|
|
|
 |
|
| Dry Rack |
|
|
 |
|
| Removable Dry Rack |
|
|
 |
|
| Dev / Fix / wash Rack |
|
|
| |
|
Max Zone |
|
|
| |
Fully Adjustable Supply
Developing and fixation solutions are automatically pumped into the processing
Tank from the replenish tanks when the level is low.
Automatic Replenishment Supply
If this mode is selected additional developing and fixation solutions are
Automatically pumped into the processing tank when a film is inserted.
Stand-By Mode
Stand-by mode can be set for 10,20 and 30 minutes to save energy
Special Developing Control System
Special developing control system If the film sensor doss not work, only the
Main control motor, dry heater and dry fan operate. (U mode)
Special Delay Circulation Mode System
In this mode, if the machine does not run, there is not enough developer and /or
Fixative and runs when enough solutions are replenished from the reservoir. |
|
| |
 |
|

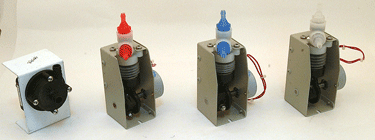

We Have developed replenishment Pump and Circulation pump which
are essential parts of film developer after a long-time research Those
Parts satisfy world standards that are applicable to almost all types of
Film processor.
Replenishment Pump and Circulation pump are acidophilic and feature
High endurance with silent functions. They are also applicable to other range of business besides medical equipment and can be
Purchased separately. |
| |
 |
|
|
| |
|
SPECIFICATIONS |
|
|
| |
| Model |
GAP-201 |
|
| Film Transport Method |
Continuous roller transport |
 |
| Film Type and Sizes |
Sheet film
4² x4² ( 10x10cm )
8²x10² ( 20.3x25.4cm )
10²x12 ( 26.4x30.5cm )
11²x14² ( 28x35cm )
14²x14² ( 35x35cm )
14²x17² ( 35x43cm ) |
| Processing Capacity |
35 x 43cm - 45 Sheet / hour
25 x 30cm - 70 Sheet / hour |
| Process Cycle adjust |
Available by a service engineer |
| Tank volume |
Developer 3.5L
Fixer 3.5L
Wash 3.5L |
| Replenishment Tanks |
Developer 25L
Fixer 25L
Wash 25L |

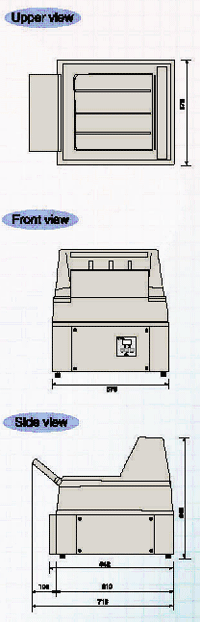

| Dimension |
Height 540mm
Width 575mm
Length 716mm |
| Power Supply |
AC. 110 / 220V single phase 50 / 60 Hz |
| Power Consumption |
Stand – by : 0.55kw / Operation 1.1kw |
| Weight |
Approx 35kg : (without solutions) |
| Accessories |
Standard
1.Replenishment Tank
2.Exhaust Hose,
3.Measurig Cup
4. Installation Parts KIT
5. Operation Manual(CD-ROM)
6. Water Filter Assembly.
OPTION
1.TABLE |
|
| |
※ The above specifications are subject to change without prior notice |
|
| |
| |
| |
| |
| |
| |
| |
| |
